**Product Philosophy and Implementation: Ozone, Photocatalyst Cyclone-Assisted UV Sterilization for Documents and Paper Books**



In daily life, we often sun our quilts to disinfect them through sunlight's rays and heat. Family members often remind us to turn the quilt over to ensure every part gets sunlight exposure.



According to technical reports provided by PHILIPS and data from the National Science Council, UV-C light cannot easily reflect onto all surfaces. To address this, Zhuozhong's library system R&D team conducted real machine tests using a professional-grade UV-C intensity meter. These tests confirmed that only the book surfaces exposed to the lamp direction receive enough UV-C sterilization dosage. In recent years, common book sterilizers in public libraries serve the same purpose for readers. However, is single-sided light exposure sufficient without flipping the book?



Books, periodicals, and documents have six faces!



Zhuozhong offers a compact and efficient three-in-one book sterilizer (photocatalyst + ozone O3-assisted UV three-lamp surround), with three horizontally placed lamps projecting UV light from different angles, fully covering even the bottom and the edges of the book. This ensures thorough sterilization, especially for document folders where the bottom signing area receives ample UV dosage.



**3V HyperVision Book Sterilizer Features:**



- **UV Sterilization:** The 3V HyperVision Book Sterilizer features a high-quality Japanese component lamp under the book opening, producing legal concentrations of O3 ozone while generating sterilizing light. This ozone penetrates the book's gaps, assisting UV light in sterilizing the inner pages. After sterilization, the ozone concentration is within IAQ environmental safety standards (below 0.06ppm), ensuring safe book retrieval immediately after sterilization. For ten years, it has maintained a balance between effective sterilization and safety, protecting millions of readers.


- **Enhanced Photocatalyst Cyclone Mechanism:** In 2020, Zhuozhong enhanced the photocatalyst cyclone mechanism, drawing in indoor air during sterilization through a meticulous photocatalyst honeycomb channel. This purified air enters the machine body and forms a three-dimensional dynamic cyclone with two upper axial fans, swirling the O3 ozone generated by the bottom lamp into the book opening, handling bacteria and viruses on the inner pages. This dual internal and external sterilization makes it a new generation of three-in-one multifunctional sterilizers for books, teaching aids, and documents.



**Applications:**



- Public library books
- Public items in schools and government agencies: documents, folders, keys, microphones, remote controls, teaching aids, headphones, temple scriptures, and medical documents in hospitals.



**Clients:**



- National Health Research Institutes
- National Theater and Concert Hall
- Space Center
- Arts and cultural centers
- Tsutaya Bookstore
- Military training department
- Police agencies
- Courts and overseas units
- Over 1500+ institutions or school libraries
- Sales in Hong Kong, Macau, Malaysia, and other countries



**New Model HUV_C0142+:**



In celebration of its 30th anniversary, Zhuozhong launched the latest model HUV_C0142+, first showcased at the National Library in 2020 and presented at the 45th Medical Librarian Conference in 2023. The seminar theme "Effects, Limitations, and Applications of Multiple Book Sterilization Principles" delved into various sterilization principles and their advantages and limitations, with effects verified by SGS. The new model holds numerous recent book sterilization patents with a 99.999% sterilization rate, integrating the strengths of sterilization boxes, book sterilizers, document sterilizers, and disinfection machines. The products are durable, stable in quality, and effectively uphold the original intention of ensuring the health of the reading public and document workers.



**Three-in-One Sterilization Technology (Multiple Sterilization):**

**Product Name:** Zhuozhong 3V Three-in-One Cyclone UV Sterilizer

**Recommended Model:** HUV-C0142+



The Zhuozhong 3V Three-in-One Cyclone UV Sterilizer adopts three core technologies to comprehensively protect the hygiene of books:



- **UV (Book Surface):** Three lamps irradiate the book from different directions to provide even and effective dosage to each side. The 253.7nm wavelength directly destroys the DNA and RNA of microorganisms (such as bacteria and viruses), effectively eliminating surface microbes.


- **Ozone (Inner Page Assistance):** Produced by a Japanese lamp at the bottom, legal and safe ozone (0.01PPM) quickly penetrates the book’s gaps (1cm) to assist sterilization, improving the overall effect.


- **Photocatalyst (Air Introduction/Deodorization):** The photocatalyst purifies introduced air, eliminating harmful gases and odors while aiding book sterilization.



**Certifications and Awards:**

- **SGS Certified**


- **National Applied Research Laboratories Instrument Technology Research Center Study:** Confirms a 99.99% inhibition rate on COVID-19 virus on documents after UV-C light exposure (253.7nm wavelength).

For more details, refer to [Instrument Knowledge Issue 223](https://www.tiri.narl.org.tw/Publication/InstTdy_Full/2329?PubId=223).



# 3V Book Sterilizer: Safe, Effective, Durable, and Friendly
# Ensuring administrative personnel and public safety during the pandemic. Many machines in service for over 10 years
# Multi-angle Sterilization
# SGS Certified
# Ozone + Photocatalyst-assisted UV
# V-shaped Placement
# AI-controlled Sterilizer







1. UV Three-Lamp Six-Side Surround Sterilization Principle
(All sides of the book can be directly exposed to UV light for sterilization)
2. Operation Demonstration
3. Parent-Child Usage in Action -
National Public Information Library's Most Popular Equipment for Ten Years
- 2020.11.11
4. Exhibition Poster - National Central Library of Taiwan - 2020
5. Recognition from the National Central Library of Taiwan - 2020
    Zhuozhong participated in the Ministry of Education's National Public Library Development Conference and Technology Exhibition hosted by the National Central Library.

教育部終身教育司司長黃月麗小姐

卓眾總經理陳林賜先生

Recognition Award from the National Central Library of Taiwan - 2020
6. Welcome Information Science Experts to Visit Zhuozhong's Booth for Guidance - 2021

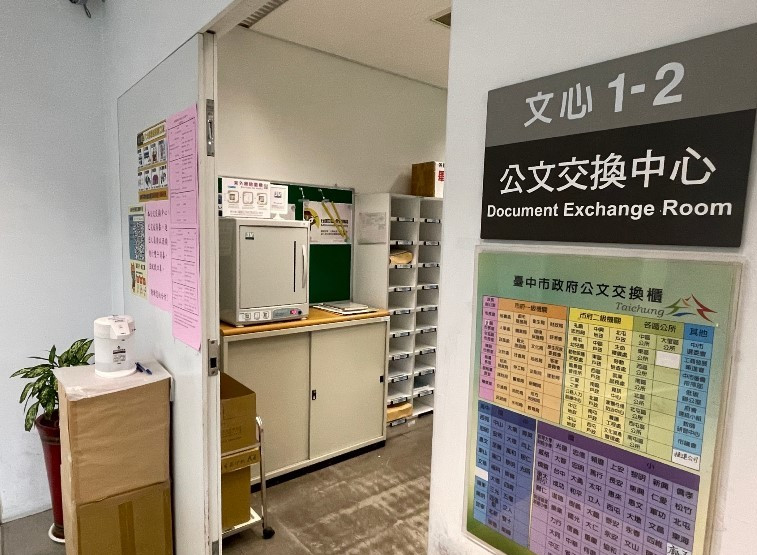

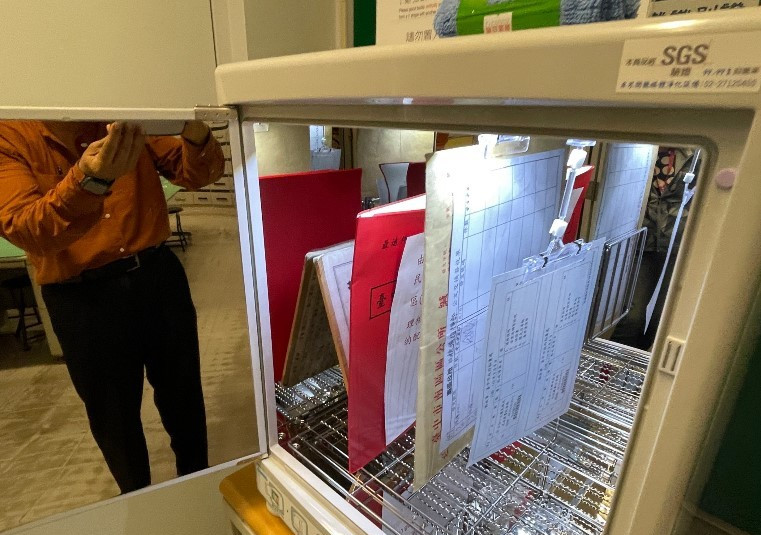

7. Practical Application of Document Sterilization
    360-degree UV projection for full exposure of all document surfaces
+ three-dimensional cyclone with proximal O3 ozone entering the book opening
市府巻宗夾
公文交換中心
郵件外封
強磁單吊

Yes, the sterilization effect of the 3V Book Sterilizer has been certified by SGS, with a sterilization rate of 99.999%. Users can trust its professional performance to ensure a hygienic and safe reading environment.

Besides libraries, the 3V Book Sterilizer can also be used for documents, teaching aids, 3C products, Bibles, Buddhist scriptures, board games, helmets, and medical institutions. It meets the diverse needs of different users and locations.

No worries, on the day of delivery, we will arrange for a specialist to explain the installation instructions on-site. They will assist with the installation and bring UV measurement instruments and teaching materials to ensure your team understands the principles of UV light and how to measure UV safety.

The operation of the 3V Book Sterilizer is very simple. Just place the book in a V-shape inside the machine, press the start button, and the AI will automatically determine the sterilization time. A beep and LED lighting will indicate when the process is complete, and you can then open the door to retrieve the book.

The user interface is friendly and requires no complex steps, making it suitable for users of all age groups, including children, the elderly, and individuals with disabilities.

On the day of delivery, we will arrange for a specialist to explain the operation methods on-site and provide instructional videos for future reference, ensuring you have no worries about using the machine.

台灣地區為交流AC110 60HZ(我司針對海外有交流AC220版本)。

3V圖書除菌機的除菌效果不受書本材質和厚度的影響。其高效的UV-C 253.7mm波長紫外線能夠確保對書本表面的全面除菌。

可以的，3V圖書除菌機主要針對書籍進行殺菌，但是對光碟、鍵盤、滑鼠等光滑表面也有很好的殺菌效果，僅限不可放入瀝水之物品。

The regular maintenance of the 3V Book Sterilizer is quite simple. It mainly involves cleaning the exterior and interior stainless steel surfaces of the machine and checking whether the lamps are functioning properly. On the day of delivery, a specialist will explain the maintenance procedures and provide instructional videos. If you have any other questions or need additional tutorial videos, please feel free to contact Zhuozhong Company.

The 3V Book Sterilizer rental option offers flexible choices. The price range depends on the rental period and quantity. Please contact us for detailed pricing information.

**Standard 3V Book Sterilizer**:

Follows UV sterilization principles, using three UV lamps to evenly irradiate all six sides of a book, ensuring sufficient UV-C dosage for clean books for readers.
Books are placed in three V-shapes, optimally processing six books at a time.
Users can adjust the [sterilization duration] and [completion alert sound] as needed.

**Three-in-One Book Sterilizer**:

In addition to the advantages of the Standard 3V Book Sterilizer, it also includes [ozone cyclone] and [photocatalyst] to enhance inner page sterilization.
This sterilizer combines three sterilization technologies for more powerful disinfection:

- **UV**: Multiple UV lamps evenly irradiate all six sides of the book, ensuring thorough exposure.
- **Ozone (O3) Assisted UV**: Legal concentration ozone penetrates the book's edges, enhancing inner page sterilization.
- **Photocatalyst**: Indoor air is channeled through a photocatalyst honeycomb, purified, and then introduced into the machine. Two fans create a dynamic 3D cyclone, guiding ozone into the book's gaps while improving air quality.
